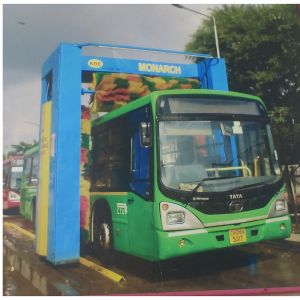

Monarch Automatic Vehicle Washing Machine

10.30 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Name KWE
Body Material Mild Steel
Automatic Grade Automatic
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Voltage
440 V
Phase
3 Phase
Water Consumption
200 Liter Per Wash
Model Number
KWE - Monarch
Motor Power
8 kW
Usage/Application
Vehicle Washing
Control Panel
PLC
No of Shampoo Spray Nozzles
2
Total Machine Height
4190 mm
Maximum Machine Width
4115 mm
Water Pressure
6 Bar
Frequency
50 Hz
Power Source
Electric
Number Of Brushes
3
Washing Height
3385 mm
Machine Length
1770 mm
Starting Method
Push Button
Technical Details
  • The Monarch is a self-contained, 3 brush roll over gantry-type machine giving a full 2 pass wash to the vehicle. In the first pass the vehicle is given a thorough cleaning with shampoo and gentle brushing action and rinsed with water in the 2nd pass. The horizontal brush follows the contour of the vehicle surface by electronic pressure sensing. The pressure of the horizontal brush is adjustable as Mild, Medium' and 'Hard'. To suit Indian conditions it also incorporates a luggage carrier avoidance circuit, anti-trap, and back-track sensing systems. The ventricle brushes wash the sides of the vehicle automatically adjusting to varying vehicle widths.
  • The new generation KWE-Monarch is automated with a Programmable Logic Controller (PLC) with EEPROM memory. It controls all machine movements with absolute precision and safety. Faults can be east), read and diagnosed by the LED display on PLC
