Automatic Car Drying Machine

16.60 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Name KWE
Power Source Electric
Motor Power 6.7 KW
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

50 Hz
Three Phase
Mild Steel
Water Consumption
145 Litre
Water Pressure
4 Bar
Control Panel
Number of Brushes
No of Shampoo Spray Nozzles
Total Machine Height
3100 mm
Maximum Machine Width
4000 mm
Brush Material
Washing Height
2400 mm
Machine Length
2135 mm
Electric Supply
415 V

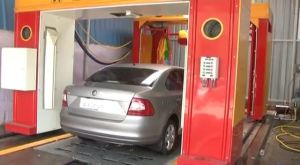

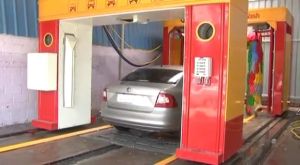

  • The system consists of two portals. On the right is the automatic car wash and on the left is the drying unit, the under chassis wash system is fitted on the wash pad Modular Form
  • The 3 modules - Car Wash, Drying Unit & Under Chassis wash can be supplied individually or as a complete system


Product Details:

  • Multi Programme System
  • Adjustable Under Chassis Wash System
  • Electronic Pressure Sensing Unit
  • Safe Touch Free Drying Unit
  • The system can wash & dry 80 or 140 cars per 8 hrs without extra cost


Additional Details:

  • The machine is rigidly constructed from high quality materials, fully treated for corrosion prevention. The appearance is enhanced by PVC moulded coverings finished in soft colours. The new generation KWE Car Wash is automation with programmable logic controller (PLC) with built-in-memory. It controls all machine movements with absolute precision and safety. In case of any fault the machine it can easily be read and diagnosed by LED display on the PLC. The KWE Car Wash is a self contained 3 brush, roll over type of machine. In the presoak cycle the vehicle is totally covered with soap flakes which are rinsed of in the return traverse after which the brush wash is started. In the first pass the vehicle is given a thorough cleaning with shampoo and gentle brushing action and in the return traverse liquid wax in predetermined quantity is sprayed over the vehicle surface. The horizontal brush keeps to the contour of the car body by electronic pressure sensing and its up/down movement controlled by a geared motor system. Accurate ampere sensing by use of Variable Frequency Drive provided constant speed and pressure control of horizontal brush for safe and smooth cleaning operation by UP and Down movement of brush, thus maximizing the cleaning process.
  • Provision is given in the machine to adjust the pressure setting of the horizontal brush to "Mild", "Medium" and "Hard", To suit Indian Conditions it also incorporates a luggage carrier avoidance circuit. The vertical brushes wash the sides of the vehicle automatically adjusting to varying vehicle widths. The movement of the vertical Units, makes the vertical brushes exert equal pressure on the vehicle side for excellent Cleaning of the Sides. The brushes are made of polyethylene material bristles mounted on PVC pads of 305mm length for easy replaceability. 2 to 3 electronic metering pumps monitor the correct ratio of mix of detergent/wax.
